The Importance of Three-Phase UPS Systems in the Southern African Medical Field.
Hospitals and healthcare facilities operate complex, sensitive systems that rely on continuous, stable, and clean sine-wave power. A single disruption can compromise a patient’s health, damage expensive medical equipment, purge highly expensive cooling gas for MRI and CT scanner superconducting imaging magnets or interrupt essential procedures. This is why installing reliable single- or three-phase UPS systems in South Africa and across Southern Africa is critical for maintaining uninterrupted healthcare operations. The professional installation of the Riello MPT, MHT, and MHE, as well as the Pureline ARS transformer-based, low-frequency UPS models, single and three-phase UPS systems, has become an important step in the planning and development of medical infrastructure across South Africa, Namibia, Angola, Botswana, Zimbabwe, Mozambique, Lesotho, Eswatini, and Malawi.
Uninterruptible Power Supply (UPS) units provide immediate power backup during outages, eliminating the gap between a power cut and the activation of a generator or other backup power systems. In medical facilities, UPS power protection ensures continuous operation for critical loads, protects data, and maintains precise power quality standards.
Why Three-Phase UPS Systems Are Essential in Healthcare
Medical facilities rely on large, power-intensive equipment such as MRI and CT scanners, surgical lighting, ventilators, and automated laboratory instruments. These systems require strict voltage stability and a clean sinusoidal current supply. A three-phase transformer-based Pureline ARS and Riello UPS system provides the level of reliability and performance needed to support these highly demanding loads.
Unlike transformerless UPS units, which are better suited to smaller offices, IT, or clinics, your low-frequency transformer-based Riello and Pureline ARS UPS unit is engineered to evenly distribute larger loads across all three phases, ensuring greater stability, efficiency, and reliability. This makes them ideal for hospitals, laboratories, and medical campuses where uninterrupted power is critical to the patient’s care and well-being.
How Does a Three-Phase Low-Frequency UPS Work?
A three-phase UPS unit operates using online double-conversion technology, continuously converting incoming AC power to DC and then back to AC. This process separates medical equipment from power disturbances, such as surges, sags, and harmonics, providing clean, consistent energy. The seamless break-free transfer between mains power supply feeding the UPS input and UPS battery backup ensures zero downtime, making it a much-needed technology for environments where power interruptions can pose patient health risks or even lead to loss of life. These industrial-grade, high-power, transformer-based, low-frequency inverter UPS units also distribute load evenly across the utility’s three input power supply phases. This ensures a balanced power draw for maximum demand metering and supports stable operation when alternative power sources such as generators are used.
They can also be equipped with filter circuits for reduction of harmonics generated back into the supply grid or even as is the case with the MHT and MHE Riello UPS they are fitted with an IGBT rectifier which limits the maximum current harmonic distortion generated back into the supply to less than 3% across most inverter load ranges as well as offer unity power factor sinusoidal current draw on the supply utility thereby reducing utility electricity billing.
Key Applications of UPS Systems in Medical Environments in Southern Africa
Hospitals and medical facilities are complex systems in which every department depends on reliable, clean electrical power. A UPS power supply provides backup power and stability, ensuring that essential medical functions remain operational even during grid failures or irregularities in grid supply voltage. The integration of three-phase low-frequency transformer-based UPS units in healthcare environments is not simply about backup power but is about ensuring patient health, maintaining precision, and protecting your expensive, sensitive equipment.
Operating Theatres
Operating theatres demand absolute stability. Any interruption, however brief, could compromise surgical outcomes or endanger patients under anaesthesia. A three-phase medical UPS ensures that all these vital systems, from surgical lighting and monitoring devices to ventilators and anaesthetic machines, continue to function without interruption. By maintaining stable voltage and frequency, the UPS system prevents damage to delicate instruments and guarantees patient safety throughout every procedure, regardless of the external power situation.

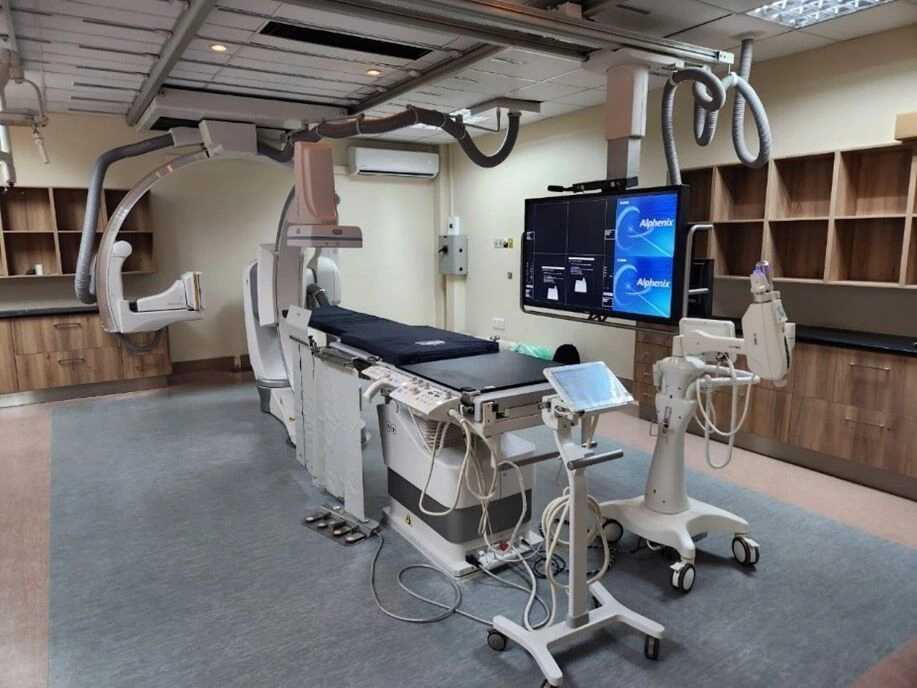

Diagnostic Imaging Equipment
Medical imaging systems such as MRI scanners, CT scanners, and X-ray machines rely on consistent, distortion-free sinusoidal power supply. These machines are particularly sensitive to fluctuations, sags, power dips, spikes, electrical noise, and surges, which can cause equipment failure, image distortion, recalibration errors, and catastrophic damage.
A Riello low-frequency transformer-based UPS backup system using the latest (VFI) Variable Frequency independent inverter controls with online double-conversion technology, supplies clean, filtered power, enabling imaging equipment to perform with maximum precision. This ensures diagnostic accuracy and actively reduces the risk of costly downtime or the need for repeated scans.
Laboratories and Pathology Departments
In laboratories, UPS reliability is important for maintaining sample integrity and ensuring accurate test results. Equipment such as centrifuges, electronic microscopes, incubators, hi-tech refrigerators and freezers, and analysers requires a constant, stable, sinusoidal backup power supply. Three-phase low-frequency UPS units like the RIELLO MPT, MHT, and MHE, as well as the Pureline ARS, support the uninterrupted operation of these systems and maintain temperature control for refrigeration and incubation units. Continuous power also ensures that data-logging and automation systems function correctly, preventing data loss or sample spoilage.
Medical Facilities Expansion and Load Growth
Often, medical facilities start out fairly small, and as demand for more services or for existing services increases, these facilities expand by adding, for instance, more radiology or laboratory equipment, which all require UPS power backup. This is no problem for the Riello low-frequency transformer-based UPS range, which is easily expandable by up to eight units of the same rating inverters in parallel to cater for this load growth.
Information Technology and Data Systems
Many modern hospitals rely heavily on digital infrastructure for patient management, record keeping, and real-time monitoring. Servers, data storage systems, and network equipment form the core of these healthcare information systems. A UPS unit provides crucial protection against data corruption or loss by keeping IT operations running during outages. With UPS batteries offering instant response, there is no delay in power transition, ensuring that patient data and critical communications remain accessible at all times. Additional typical Riello UPS models suitable for these types of medical facility loads include the three-phase Sentryum UPS range up to 120 kVA, the MST range up to 200 kVA, and the single-phase SDU, STW, or Pureline ranges.
For more information on UPS batteries in any type of environment, consider reading our blog: Everything you need to know about UPS batteries in South Africa: The Ultimate Guide to UPS Batteries.
Emergency and Life-Support Systems
In emergency rooms, intensive care units, and neonatal wards, power continuity can mean the difference between life and death. Three-phase UPS systems ensure that ventilators, infusion pumps, and cardiac monitors operate without interruption, and in the event of utility power supply loss, a three-phase UPS keeps them running smoothly until a generator takes over. By filtering and stabilising the power supply, it also protects sensitive life-support equipment from harmful voltage fluctuations that could cause premature wear or, in the worst case, a malfunction.
Building Management and Environmental Control Systems
Beyond direct medical equipment, UPS systems in hospitals support hospital infrastructure, including building management systems, air conditioning, ventilation, and lighting. Maintaining environmental control is essential for infection prevention, equipment cooling, and the comfort of doctors, nurses, and patients. A reliable industrial-grade UPS ensures these systems remain functional, supporting safe, controlled conditions throughout the medical facility.
Pharmacies and Cold Storage Areas
Many medications, vaccines, and biological materials require strict and controlled temperature regulation. In the event of a power failure, even a small disruption can lead to significant financial and medical losses. A UPS backup system maintains refrigeration and cold storage units, keeping conditions stable until the generator or mains power is restored.
In each of these areas, a UPS does more than provide backup power. It maintains power, protects sensitive assets, and ensures that hospitals operate at the highest set standards of safety and care. The use of three-phase UPS systems in healthcare is not an option but a have-to for facilities that place patient well-being and operational excellence above everything else.
Energy Efficiency and Reliability
Modern three-phase UPS systems are designed to operate with high efficiency, reducing energy waste and operational costs. Their advanced power conversion technology helps hospitals control their energy expenditure while maintaining consistent power quality. Additionally, modular UPS configurations make maintenance straightforward, ensuring uptime and flexibility for future growth demands.
Recommended Systems for Medical Applications
Standby Systems South Africa supplies a range of Riello UPS units designed for the medical industry. These systems combine performance and efficiency, making them ideal for critical healthcare environments.
Riello Master MPS
The Riello Master MPS low-frequency MPT UPS is available in 3/1 or 3/3 phase configurations in the following sizes: 10 kVA, 15 kVA, 20 kVA, 30 kVA, 40 kVA, 60 kVA, 80 kVA, 100 kVA, 120 kVA, 160 kVA, and 200 kVA. The 100, 120, and 160 kVA models are the most used in hospitals, particularly for medical imaging applications such as MRI and CT scanners. This UPS range features a 0.9 lagging power-factor inverter and is one of the most widely used solutions in hospitals across Africa for both medical imaging and emergency systems.
Riello Master HP
The Riello Master HP low-frequency MHT UPS is available in 3/3 phase configurations in the following sizes: 100 kVA, 120 kVA, 160 kVA, 200 kVA, 250 kVA, 300 kVA, 400 kVA, 500 kVA, and 600 kVA. The 100, 120, and 160 kVA models are the most widely used in hospitals, particularly for medical imaging applications such as MRI and CT scanners.
This UPS range is equipped with a 0.9 lagging power factor inverter and incorporates an IGBT rectifier as standard. This significantly reduces harmonic injection back into the supply and provides unity power factor load draw on the incoming mains. These features make the MHT an excellent choice for hospitals, radiography departments, and other medical facilities where grid capacity is limited or where existing generators are already operating near their maximum load.

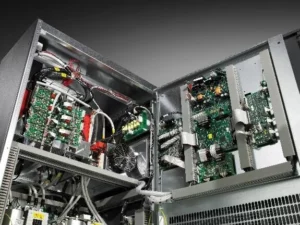

Riello Master HE
The Riello Master HE low-frequency MHE UPS is available in 3/3 phase configurations in the following sizes: 100 kW, 120 kW, 160 kW, 200 kW, 250 kW, 300 kW, 400 kW, 500 kW, 600 kW, and 800 kW. The 300 to 600 kW units are the most used in hospitals, particularly for supplying the main building load where all critical hospital systems are connected to a single backup power source.
This UPS range features a unity power factor inverter, meaning kVA equals kW, and it incorporates an IGBT rectifier as standard. This design reduces harmonic injection back into the supply and ensures unity power factor load draw on the incoming mains.
In addition, the MHE series offers exceptionally high operating efficiency, making it a preferred choice for medical facilities seeking to reduce energy consumption, lower operating costs, and operate sustainably.
A high-efficiency transformer-based UPS for large-scale, high-demand medical environments.
Riello Sentryum
Ideal for small to medium-sized hospitals and clinics, the Riello Sentryum is a compact, high-power, high-efficiency three-phase UPS designed with flexible battery configurations. The 10 to 40 kVA models can accommodate up to 20 minutes of internal battery runtime, offering significant space savings, or they can be paired with external battery banks that provide several hours of autonomy.
Its online double-conversion architecture and transformer-free inverter, combined with a unity power factor rating, deliver a high-power, small-footprint solution that ensures stable and clean power for medical diagnostic equipment and IT networks.
Why Standby Systems South Africa?
Standby Systems is the official Riello UPS distributor in South Africa, offering end-to-end UPS solutions for healthcare, industrial, and commercial applications. With over 20 years of Riello excellence and experience, the company delivers expert guidance on system design, installation, and ongoing maintenance across Southern Africa, including Namibia, Botswana, Zimbabwe, and beyond. Our technical team provides tailored advice on selecting the right three-phase UPS system to match your facility’s specific medical requirements, ensuring full reliability and compliance with industry standards. To read more about what sets us apart from other UPS providers, please read our blog: What sets Standby Systems apart from any other UPS provider?
When lives depend on consistent power, you need a reliable UPS partner who understands what’s at stake. Standby Systems delivers that partnership through expert consultation, proven Riello technology, and a commitment to keeping your medical operations running smoothly and safely.
To learn how we can help you strengthen your power infrastructure, visit Standby Systems’ website or speak directly to our technical team at 011 794 3406 (services), 011 794 2541 (sales), or 082 450 2361 (after-hours UPS system support).
